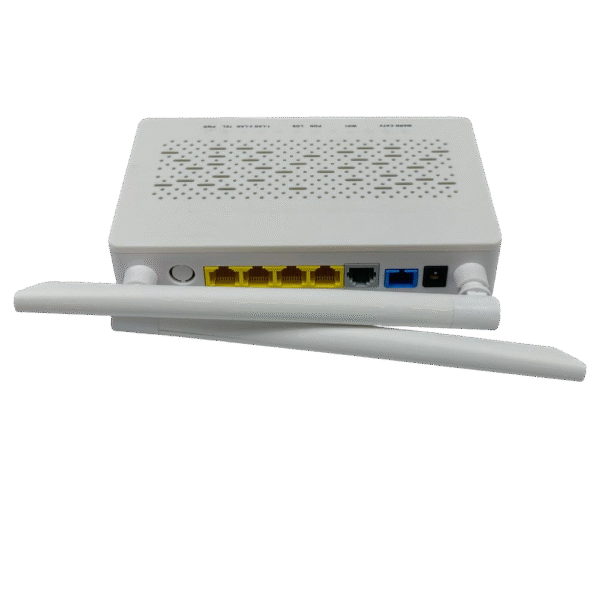

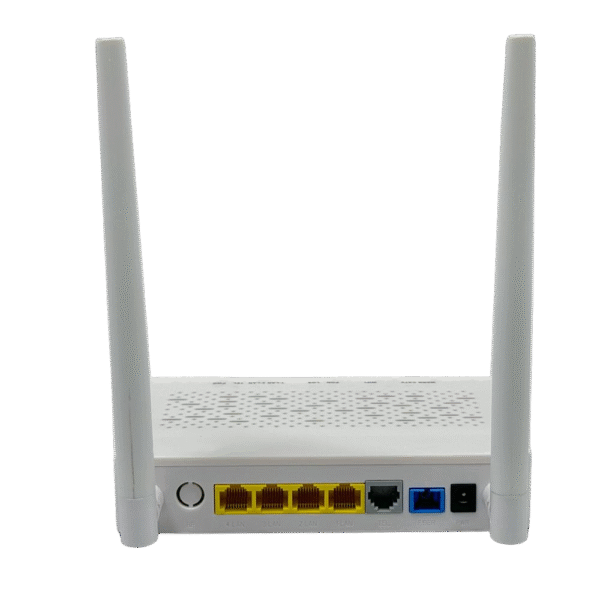

Interface of device
| Port Type | Function |
| LAN 1~4 port | 3*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |
| TEL | RJ11 Port connects to telephone |
| Reset Button (RST) | Press down reset button and keep 5 seconds to make the device restart and recover from the factory default Settings |
| WPS Button (WPS) | WPS: Press for 3 seconds and press the WPS button of other Wi-Fi devices within 2 minutes to start standard WPS negotiation |
| PWR port (DC12 V) | Connect with power adapter |
PON Interface Specifications
| Parameter | Description |
| Connector Type | SC/APC or SC/UPC |
| PON Port Quantity | 1 |
| Fiber Type | Single mode |
| Wavelength | TX：1310 +/-20nm RX：1490 +/-10nm |
| Interface Standard | ITU-T G.984/ITU-T G.988/IEEE802.3ah |
| nterface Receiving Rate | EPON:1.25Gpbs GPON:2.488Gpbs |
| Interface Transmitting Rate | EPON:1.25Gpbs GPON:1.244Gpbs |
| Output Optical Power | 0~4dBm |
| Optical Receiver Sensitivity | -28dBm |
| The Length of the Optical Link | Max 20km |
Physical structure, Environment and Electrical parameter
| Parameter | Description |
| Dimension | 155*92*32mm（L×W×H） |
| Net Weight | 0.4Kg（mainframe） |
| Typical power consumption | ≤2.5W |
| Humidity | 10～85%（non-condensation） |
| Cooling Style | Naturally Cooling |
| Power Supply | DC 12V 1A |
| Environment | -5～+55℃ |
Wi-Fi Specifications
VoIP Features
| Parameter | Description |
| Voltage and Current Monitoring | The continuously monitors the TIP, RING, and battery voltages and currents via an on-chip Monitor ADC |
| Protocol | Protocol: SIP;Code type selection:G722,G729,G711A,G711U;FAX:T38; |
| Thermal Overload Shutdown | If the die temperature exceeds the maximum junction temperature threshold, the device will shut itself down |
| Product Name | Product Model | Descriptions |

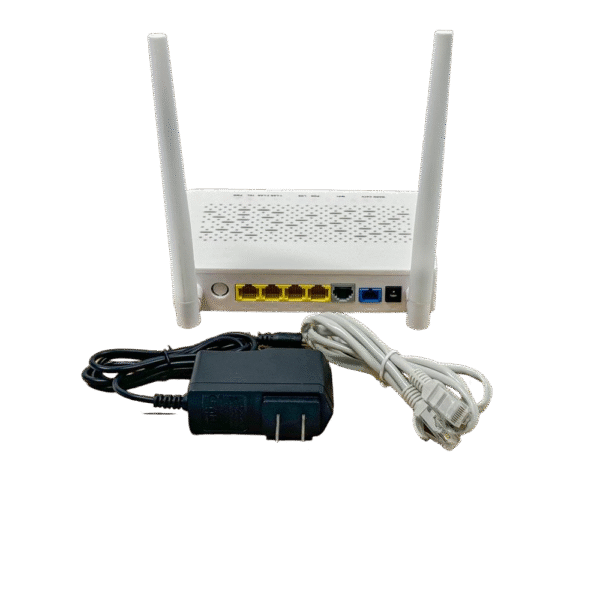

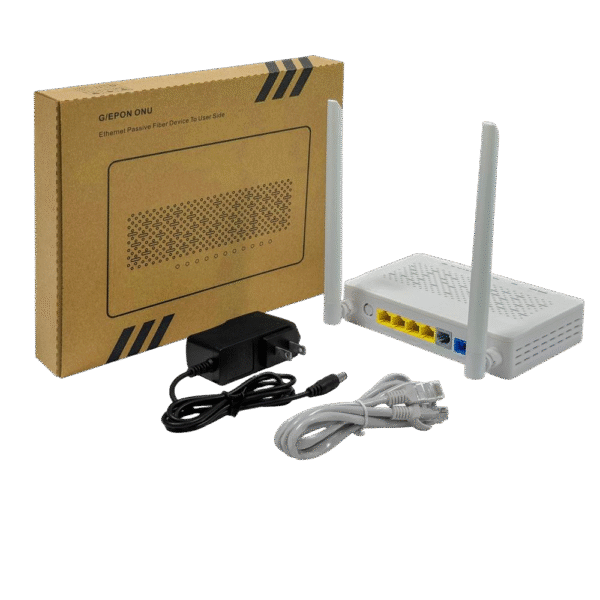

| XPON ONU | XN41N | 1GE+3FE+POTS+WIFI4(2.4G), User manual, Power supply adapter |
